   Hoggar
Asthenospheric upwelling and lithosphere rejuvenation
beneath the Hoggar swell, Algeria: evidence from mantle xenoliths

L. Beccaluva1, A. Azzouni-Sekkal2, A. Benhallou3, G. Bianchini1, R.M. Ellam4, M. Marzola1, F. Siena1 and F.M. Stuart4

1Dipartimento di Scienze della Terra, Università di Ferrara, Italia, bcc@unife.it, bncglc@unife.it, mrzmsm1@unife.it, snr@unife.it
2Faculté des Sciences de la Terre, Géographie et Aménagement du Territoire, Université des Sciences et Technologie Houari Boumédienne, Alger, Algérie, asazzouni@hotmail.com
3CRAAG (Centre de Recherche en Astronomie, Astrophysique et Géophysique), Alger, Algérie, zoulema@yahoo.com
4Isotope Geoscience Unit, Scottish Universities Environmental Research Centre, East Kilbride, UK, r.ellam@suerc.gla.ac.uk, f.stuart@suerc.gla.ac.uk

Corresponding author: Luigi Beccaluva

This webpage is an abridged version of Beccaluva, L., A. Azzouni-Sekkal, A. Benhallou, G. Bianchini, R.M. Ellam, M. Marzola, F. Siena and F.M. Stuart, Intracratonic asthenosphere upwelling and lithosphere rejuvenation beneath the Hoggar swell (Algeria): Evidence from HIMU metasomatised lherzolite mantle xenoliths, Earth Planet. Sci. Lett., 260, 482-494, 2007.


Click here to download a PDF version of this webpage




The Cenozoic volcanism of the Hoggar region (Algeria) represents one of the most important magmatic areas in the north African belt [Ed: See also the webpage The Hoggar swell and volcanism, Tuareg shield, Central Sahara]. It covers more than 10,000 km2 and is associated with a regional crustal swell of Pan-African terranes, approximately 1000 km in diameter (Figure 1). The oldest Cenozoic volcanic rocks comprise a thick pile of tholeiitic plateau basalts (35-30 Ma) characterized by an isotopic signature typical of EM1-type enriched mantle (Aït-Hamou et al., 2000). Younger (Neogene-Quaternary) volcanic rocks have an alkaline affinity and include both basic lavas and trachyte-phonolite differentiates, with a prevalent HIMU (high μ) Pb-Nd-Sr isotopic signature (Allègre et al., 1981; Azzouni-Sekkal et al., 2007). In the Manzaz (Central Hoggar) district, the youngest volcanic episodes are markedly alkaline (basanites and nephelinites) and sometimes entrain the mantle xenoliths which are the subject of this study.

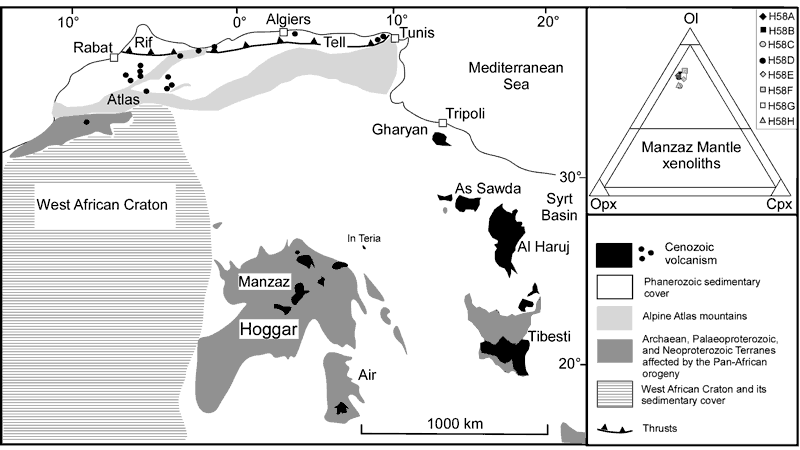

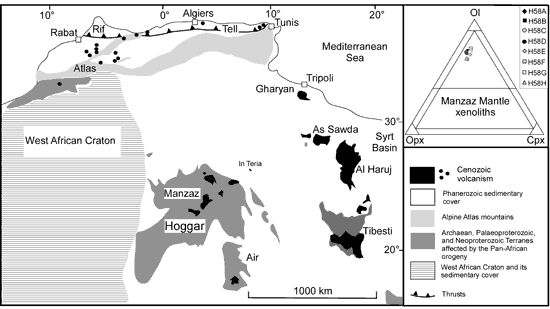

Figure 1. Sketch map showing locations of the main Cenozoic volcanic fields of north Africa, after Liégeois et al. (2005). Modal compositions of the Manzaz mantle xenoliths in terms of olivine (ol), orthopyroxene (opx) and clinopyroxene (cpx) are shown. Click here or on figure for enlargement.



The mantle xenoliths are proto-granular anhydrous spinel lherzolites. Major- and trace-element analyses on bulk rocks and constituent mineral phases show that the primary compositions are widely overprinted by metasomatic processes. Trace-element modelling of the metasomatised clinopyroxenes allows the inference that the metasomatic agents that enriched the lithospheric mantle were highly alkaline carbonate-rich melts such as nephelinites/melilitites (or extreme silico-carbonatites). These agents were characterized by a clear HIMU Sr-Nd-Pb isotopic signature. There is no evidence of EM1 components which are recorded by the Hoggar Oligocene tholeiitic basalts.



Figure 2. Sr-Nd-Pb isotopic variations of clinopyroxenes from Manzaz mantle xenoliths. Composition of mantle xenoliths from the Gharyan district of Libya (Beccaluva et al., in press), and Cenozoic alkaline lavas from various African volcanic areas, are given for comparison: Hoggar (Allègre et al., 1981), Jebel Marra (Davidson & Wilson, 1989; Franz et al., 1999), Iblean - Sicily Channel Districts (Beccaluva et al., 1998; Bianchini et al., 1998; Civetta et al., 1998). Isotopic mantle end members (DM, HIMU, EMI and EMII) are from Zindler & Hart (1986).



This can be interpreted as resulting from replacement of the older lithospheric mantle, from which the tholeiites were generated, by upwelling asthenosphere with a HIMU signature. Accordingly, this rejuvenated lithosphere (accreted asthenosphere without an EM signature) may represent a possible mantle source from which deep alkaline basic melts could have been generated and shallower mantle xenoliths derived. The systematic occurrence of Neogene alkaline lavas and associated mantle xenoliths with a clear HIMU affinity across the African plate indicates that it is a ubiquitous sub-lithospheric component across Central-Northern Africa. In fact this component is considered related to the ultimate fate of subducted oceanic lithotypes which create high U/Pb and Th/Pb mantle domains that, after long-term storage, result in highly radiogenic Pb compositions (Weaver, 1991; Carlson, 1995; Hofmann, 1997). Accordingly, Wilson & Patterson (2001) physically locate this component above the 670-km discontinuity in the upper mantle, where geophysical evidence shows subducted slab relics flatten over wide upper-mantle regions (e.g., in the Central Mediterranean; Faccenna et al., 2001; Beccaluva et al., 2005).

The available data on the lherzolite xenoliths and alkaline lavas (including He isotopes with R/Ra < 9) indicate that there is no requirement for a deep plume anchored in the lower mantle. Sources in the upper mantle can satisfactorily account for all the geochemical, petrological and geophysical evidence characterizing the Hoggar swell. The relatively low 3He/4He ratios observed for the Saharan districts are a further indication that this metasomatic component is confined in the upper mantle, unlike the Ethiopian-Yemen plateau basalts (3He/4He up to 20 Ra) which have been related to a deep mantle plume possibly generated from the core-mantle boundary (Pik et al., 2006) [Ed: But see also Helium Fundamentals page]. By contrast, relatively low 3He/4He can be satisfactorily explained by degassing of shallow mantle domains and/or the addition of recycled components to the upper mantle (Moreira & Kurz, 2001).

Moreover, the lithosphere uplift that resulted in the Hoggar swell conforms with geophysical evidence such as the gravity field data (Bouguer anomaly of -90 mGal; Lesquer et al., 1988) and the thermal anomaly centred on the Atakor volcanism (heat flow 63 mW/m2; Lesquer et al., 1989). Seismic tomography of the mantle beneath north Africa shows that the lithosphere thickness in the Sahara area is variable due to local asthenospheric upwellings (Ayadi et al., 2000) which generally do not extend deeper than ca. 400 km, thus precluding the existence of deep mantle plumes anchored in the lower mantle (Davaille et al., 2000; Sebai et al., 2006).

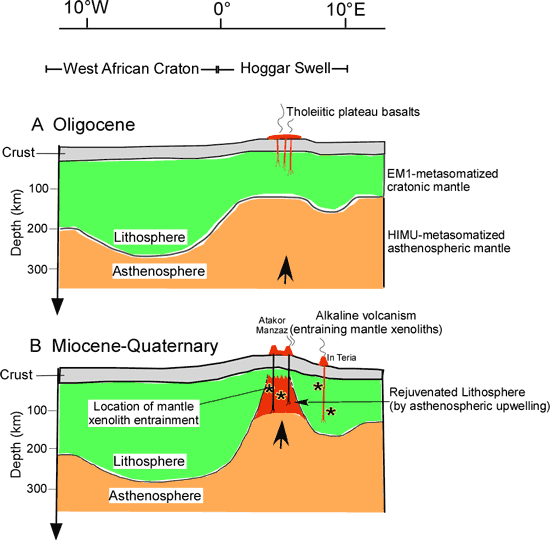

Figure 3. Simplified cartoon showing the hypothesised lithosphere/asthenophere interactions beneath the Hoggar swell. (a) Tholeiitic plateau basalts (35-30 Ma) formed by high degrees of melting of EM1-metasomatised mantle of the Pan-African cratonic lithosphere. (b) Younger alkaline volcanism of the Atakor-Manzaz area generated from low degrees of melting of HIMU-metasomatised mantle sources. The latter probably represents a rejuvenated lithosphere formed by intra-cratonic upwelling and accretion of asthenopheric material. The Manzaz spinel lherzolite xenoliths may therefore represent fragments of this rejuvenated lithosphere, whereas the garnet/spinel peridotite xenoliths from In Teria (Dautria et al., 1992) may represent the older cratonic mantle of the Pan-African lithosphere.



In conclusion, convection in the upper mantle and lithosphere/asthenosphere interactions mainly along lithospheric discontinuities such as craton/mobile belt borders, as proposed by the edge-driven convection model (King & Anderson, 1995; 1998) is the most appropriate geodynamic scenario for the mantle evolution of the Hoggar swell.

Hoggar volcanism, as well as other volcanism in the Saharan belt, is thus probably related to passive asthenospheric mantle upwelling and decompression melting linked to extensional stresses in the lithosphere during Cenozoic reactivation and rifting of the Pan-African basement. This can be considered a far-field foreland reaction to the Africa-Europe collisional system subsequent to the Eocene.



References

  • Aït-Hamou F., Dautria J.M., Cantagrel J.M., Dostal J., Briqueu L., 2000. Nouvelles données géochronologiques et isotopiques sur le volcanisme cénozoïque de l'Ahaggar (Sahara algérien): des arguments en faveur d'un panache. Comptes Rendus de l'Académie des Sciences de Paris 330, 829-836.
  • Allègre C.J., Dupré B., Lambert B., Richard P., 1981. The sub-continental versus sub-oceanic debate. Lead-neodymium-strontium isotopes in primary basalts in a shield area: the Ahaggar volcanic suite. Earth Planet. Sci. Lett. 52, 85-92.
  • Ayadi A., Dorbath C., Lesquer A., Bezzeghoud M., 2000. Crustal and upper mantle velocity structure of the Hoggar swell (Central Sahara, Algeria). Physics Earth Planet. Int. 118, 111–123.
  • Azzouni-Sekkal A., Bonin B., Benhallou A., Yahiaoui R., Liégeois J.-P, 2007. Tertiary alkaline volcanism of the Atakor Massif (Hoggar, Algeria). In: L. Beccaluva, G. Bianchini, M. Wilson (Eds), Cenozoic volcanism in the Mediterranean Area, Geological Society of America (GSA) Special Paper 418, 321-340.
  • Beccaluva L., Siena F., Coltorti M., Di Grande A., Lo Giudice A., Macciotta G., Tassinari R., Vaccaro C., 1998. Nephelinitic to tholeiitic magma generation in a transtensional tectonic setting: an integrated model for the Iblean volcanism, Sicily. J. Petrol. 39, 1547-1576.
  • Beccaluva L., Bianchini G., Coltorti M., Siena F., Verde M., 2005. Cenozoic tectono-magmatic evolution of the central-western mediterranean: migration of an arc-interarc basin system and variations in the mode of subduction. In: Finetti, I. (Ed), Elsevier special volume, Crop Project - Deep Seismic Exploration of the Central Mediterranean and Italy, pp 623-640.
  • Beccaluva L., Bianchini G., Ellam R.M., Marzola M., Oun K.M., Siena F., Stuart F.M., in press. The role of HIMU metasomatic components in the African lithospheric mantle: petrological evidence from the Gharyan peridotite xenoliths, NW Libya. In M. Coltorti, M. Grégoire (Eds.) Mantle metasomatism in intra-plate and suprasubduction settings, Geological Society, Special Publication, 293, 253-277.
  • Bianchini G., Clocchiatti R., Coltorti M., Joron J.L., Vaccaro C., 1998. Petrogenesis of mafic lavas from the northernmost sector of the Iblean District (Sicily). Eur. J. Mineral. 10, 301-315.
  • Carlson R.W., 1995. Isotopic inferences on the chemical structure of the mantle. J. Geodynamics 20, 365-386.
  • Civetta L., D'Antonio M., Orsi G., Tilton G.R., 1998. The geochemistry of volcanic rocks from Pantelleria island, Sicily Channel: petrogenesis and characteristics of the mantle source region. J. Petrol. 39,1453-1492.
  • Dautria J.M., Dupuy C., Takherist D., Dostal J., 1992. Carbonate metasomatism in the lithospheric mantle: peridotitic xenoliths from a melilititic district of the Sahara basin. Contrib. Mineral. Petrol. 111, 37-52.
  • Davaille A., Stutzmann E., Silveira G., Besse J., Courtillot V., 2005. Convective patterns under the Indo-Atlantic. Earth Planet. Sci. Lett. 239, 233-252.
  • Davidson J.P., Wilson I.R., 1989. Evolution of an alkali basalt-trachyte suite from Jebel Marra volcano, Sudan, through assimilation and fractional crystallization. Earth Planet. Sci. Lett. 95, 141-160.
  • Faccenna C., Funiciello F., Giardini D., Lucente P., 2001. Episodic back-arc extension during restricted mantle convection in the Central Mediterranean. Earth Planet. Sci. Lett. 187, 105-116.
  • Franz G., Steiner G., Volker F., Pudlo D., Hammerschmidt K., 1999. Plume related alkaline magmatism in central Africa - the Meidob Hills (W Sudan). Chem. Geol. 157, 27-47.
  • Hofmann A.W., 1997, Mantle geochemistry: the message from oceanic volcanism. Nature 385, 219-229.
  • King S.D., Anderson D.L., 1995. An alternative mechanism of flood basalt formation. Earth Planet. Sci. Lett. 136, 269-279.
  • Lesquer A., Bourmatte A., Dautria J.M., 1988. Deep structure of the Hoggar domal uplift (Central sahara, south Algeria) from gravity thermal and petrological data. Tectonophysics 152, 71-87.
  • Lesquer A., Bourmatte A., Ly S., Dautria J.M., 1989. First heat flow determination from the Central Sahara: relationshipswith the Pan-African belt and Hoggar domal uplift. J. African Earth Sc. 9, 41-48.
  • Liégeois J.P., Benhallou A., Azzouni-Sekkal A., Yahiaoui R., Bonin B., 2005. The Hoggar swell and volcanism: Reactivation of the Precambrian Tuareg shield during Alpine convergence and West African Cenozoic volcanism. In: G.R. Foulger, J.H. Natland, D.C. Presnall, D.L. Anderson (Eds.), Plates, Plumes, and Paradigms, Geological Society of America (GSA) Special Paper 388, 379-400.
  • Moreira M., Kurz M. D., 2001. Subducted oceanic lithosphere and the origin of the `high µ´ basalt helium isotopic signature. Earth Planet. Sci. Lett. 189, 49-57.
  • Pik R., Marty B., Hilton D.R., 2006. How many plumes in Africa? The geochemical point of view. Chem. Geol. 226, 100-114.
  • Sebai A., Stutzmann E., Montagner J.-P., Sicilia D. et al., 2006. Anisotropic structure of the African upper mantle from Rayleigh and Love wave tomography. Physics of the Earth and Planetary Interiors 155, 48-62.
  • Weaver B.L., 1991. The origin of ocean island basalt end-member compositions: trace element and isotopic constraints. Earth Planet. Sci. Lett. 104, 381-397.
  • Wilson M., Patterson R., 2001. Intraplate magmatism related to short-wavelength convective instabilities in the upper mantle: Evidence from the Tertiary-Quaternary volcanic province of Western and Central Europe. In: R.E. Ernst, K.L. Buchan (Eds.) Mantle plumes: their identification through time, Geological Society of America (GSA) Special Paper 352, 37–58.
  • Zindler A., Hart S.R., 1986. Chemical Geodynamics. Earth and Planetary Sciences, Annual Review, 14, 493-571.
last updated 23rd September, 2007
